0.8mm SG2 Mild Steel Mig Welding Wire 5kg Plastic Spool ( ER 70S-6 )
AWS A5.18 - ER 70S-6
EN ISO 14341-A - G 42 3 C1 / G 42 4 M21 3Si1
Features and Applications
A copper coated solid wire suitable for single pass or multipass welding of unalloyed and low-alloyed carbon-manganese steels.
Good mechanical properties at sub-zero temperatures down to -40ºC.

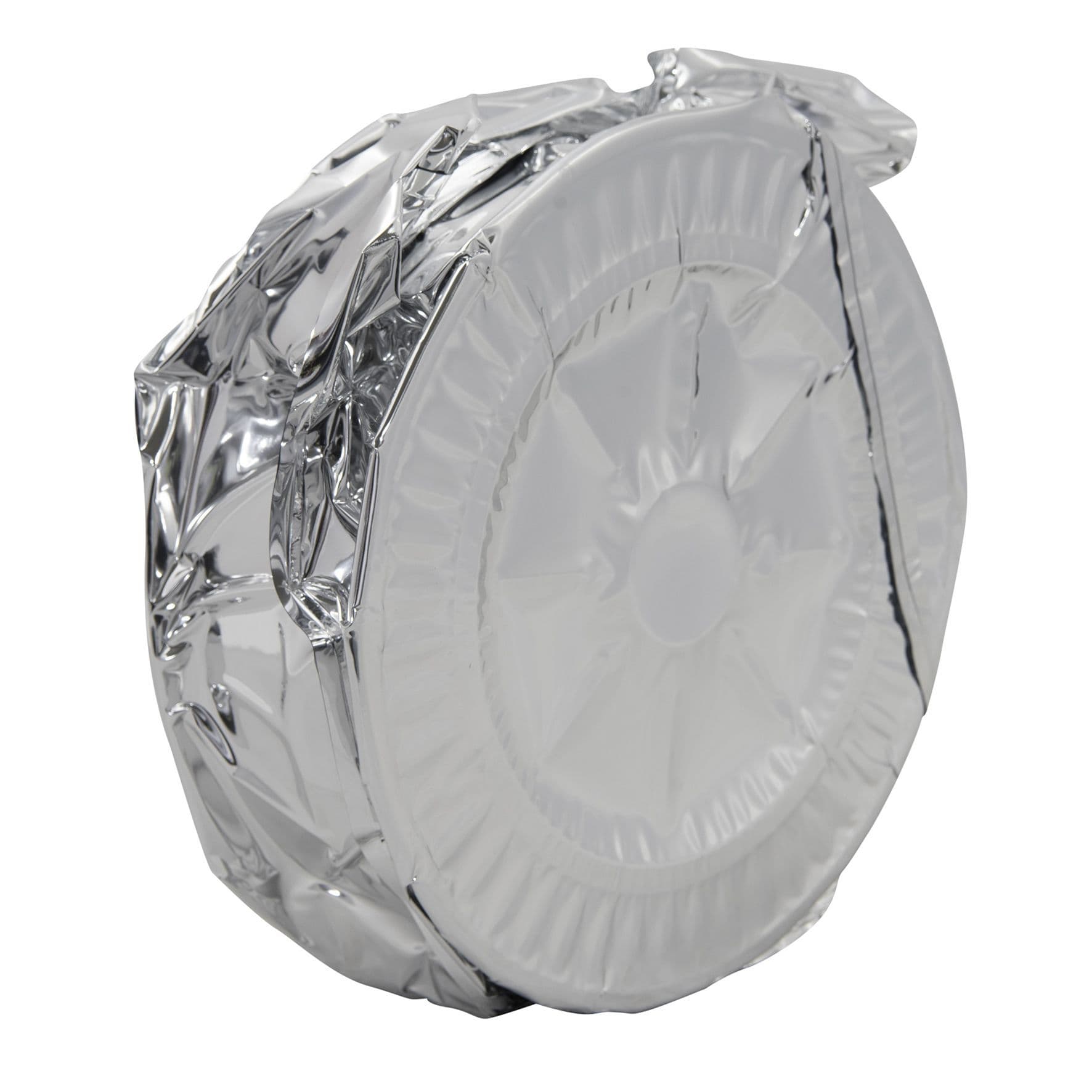

Vacuum-sealed aluminium foil packaging to prevent moisture absorption.
Precision layer wound for superior wire feeding characteristics.
Typically used on boilers, industrial machinery, bridges, shipbuilding, automotive, rail, structural and engineering fabrications etc.
Green wire is produced using virgin raw materials sourced from specialised steel mills, which ensures consistent reliability and quality.
Typical Base Materials
S185, S235, S275, S355 - Grade A, B, D, AH32 to DH36 - L210, L240, L290, L360, L240NB, L290NB, L360NB, L360QB, L240MB, L290MB, L360MB, L415MB - X42, X46, X52, X60 - P235T1, P235T2, P275T1 - P275T2, P355N - P235GH, P265GH, P295GH, P355GH - S275, S355, S420, S275M, S275ML, S355M, S355ML, S420M, S420ML*
* Illustrative, not exhaustive list
| Standards |
| EN ISO 14341-A - G 42 3 C1 / G 42 4 M21 3Si1 |
| AWS A5.18 - ER 70S-6 |
| Chemical Composition % (Typical) |
| C% |
Si% |
Mn% |
P% |
S% |
Cu% |
| 0.07 |
0.85 |
1.45 |
<0.025 |
<0.025 |
<0.35 |
|
|
|
|
|
|
| Cr% |
Ni% |
Mo% |
Al% |
V% |
Zr+Ti% |
| <0.15 |
<0.15 |
<0.15 |
<0.020 |
<0.030 |
<0.15 |
| Mechanical Properties (Typical) |
| Shielding Gas |
C1 |
M21 |
| Tensile Strength |
540 MPa |
580 MPa |
| Yield Strength |
440 MPa |
460 MPa |
| Elongation |
30% |
26% |
| Impact Strength |
70 J |
90 J |
| Test Temperature |
-30ºC |
-40ºC |
Mechanical properties are approximate and may vary based on the heat, shielding gas, welding parameters and other factors.
| Welding Parameters |
| Ømm |
Current (A) |
Voltage (V) |
| 0.60 mm |
50-100 |
15-20 |
| 0.80 mm |
60-180 |
18-22 |
| 1.00 mm |
80-230 |
20-28 |
| 1.20 mm |
120-350 |
26-34 |
| 1.40 mm |
150-420 |
27-36 |
| 1.60 mm |
220-500 |
28-38 |
Shielding Gases
EN ISO 14175 - C1, M21
Welding Positions
EN ISO 6947 - PA, PB, PC, PD, PE, PF, PG
Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained, this information is subject to change without notice and can be only considered as suitable for general guidance.
